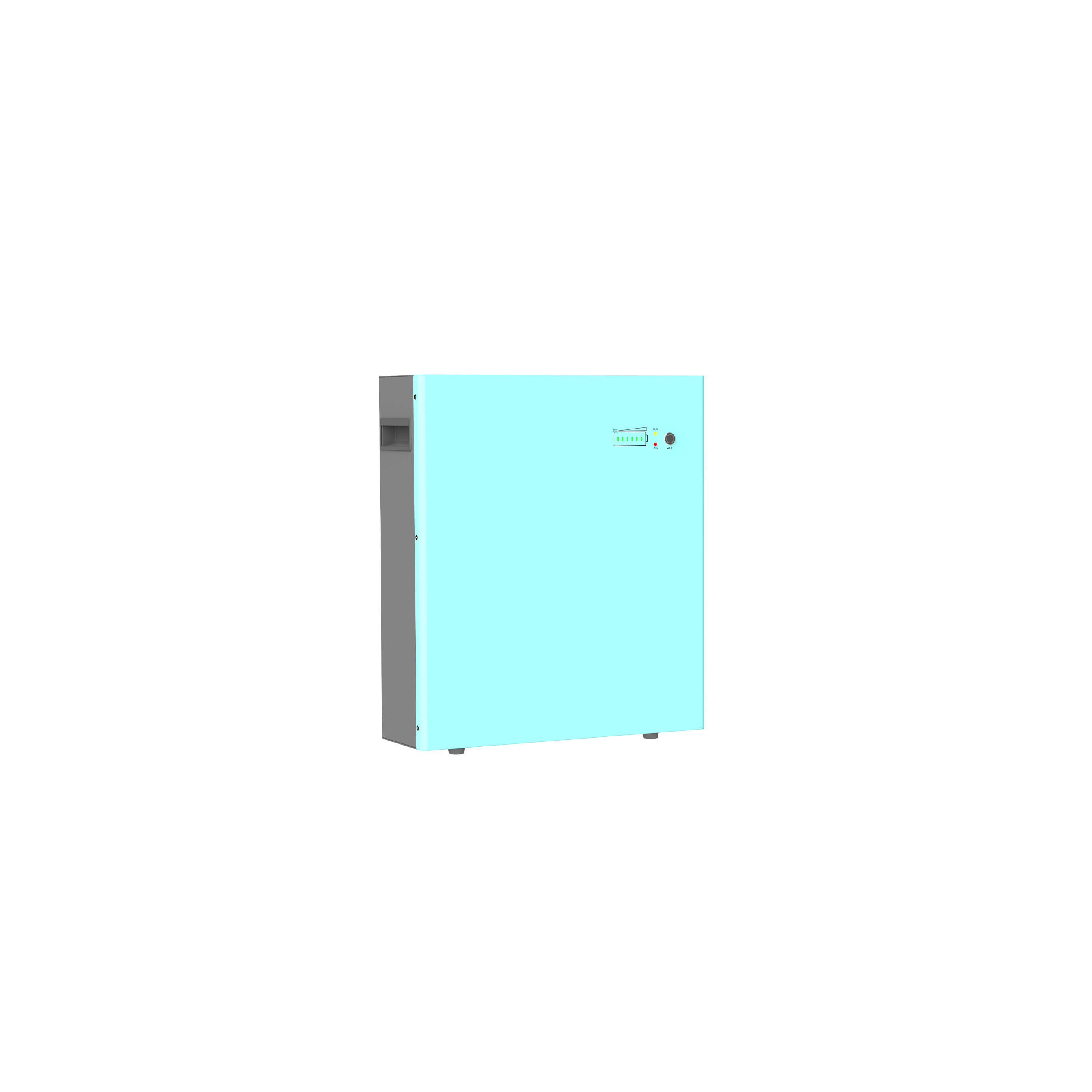

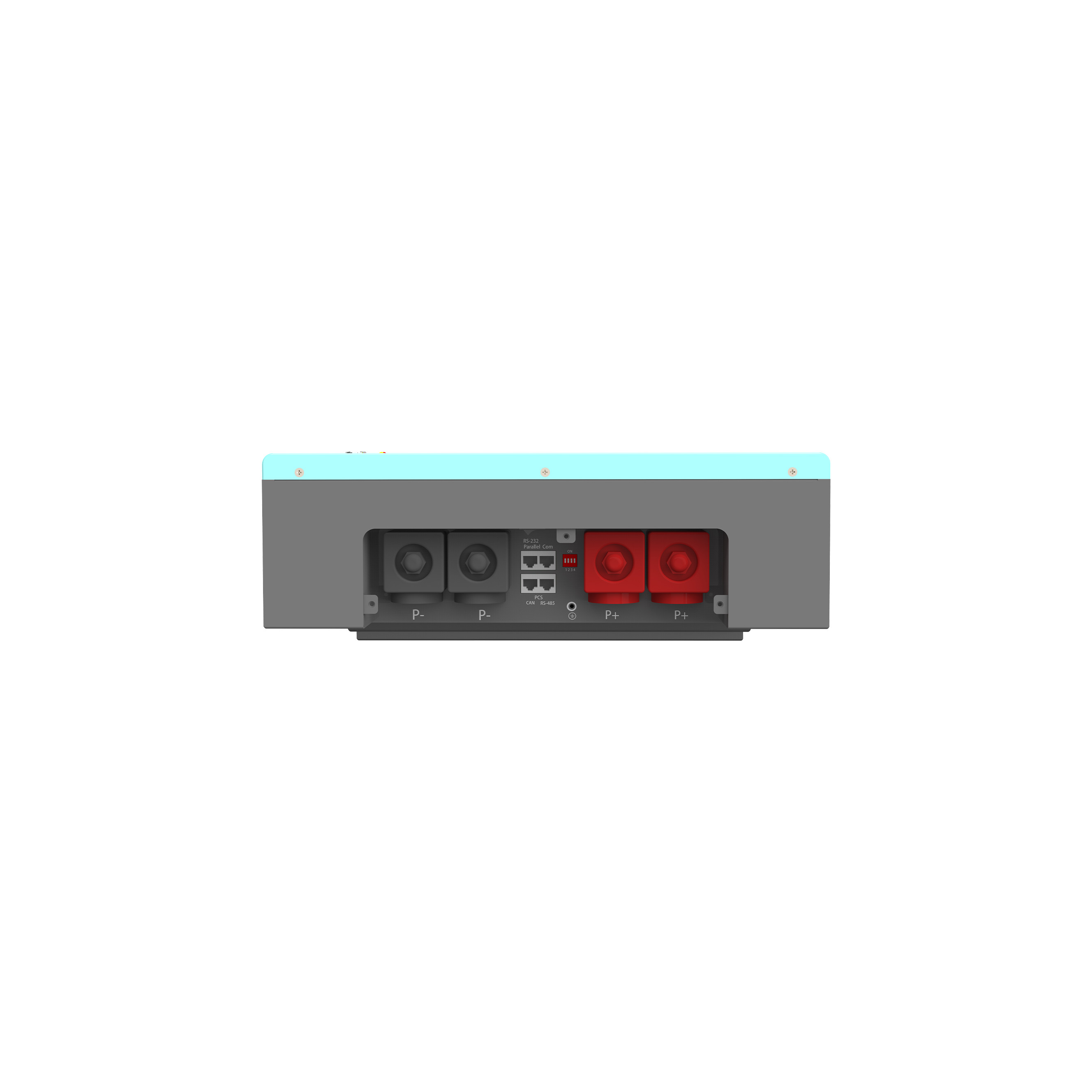

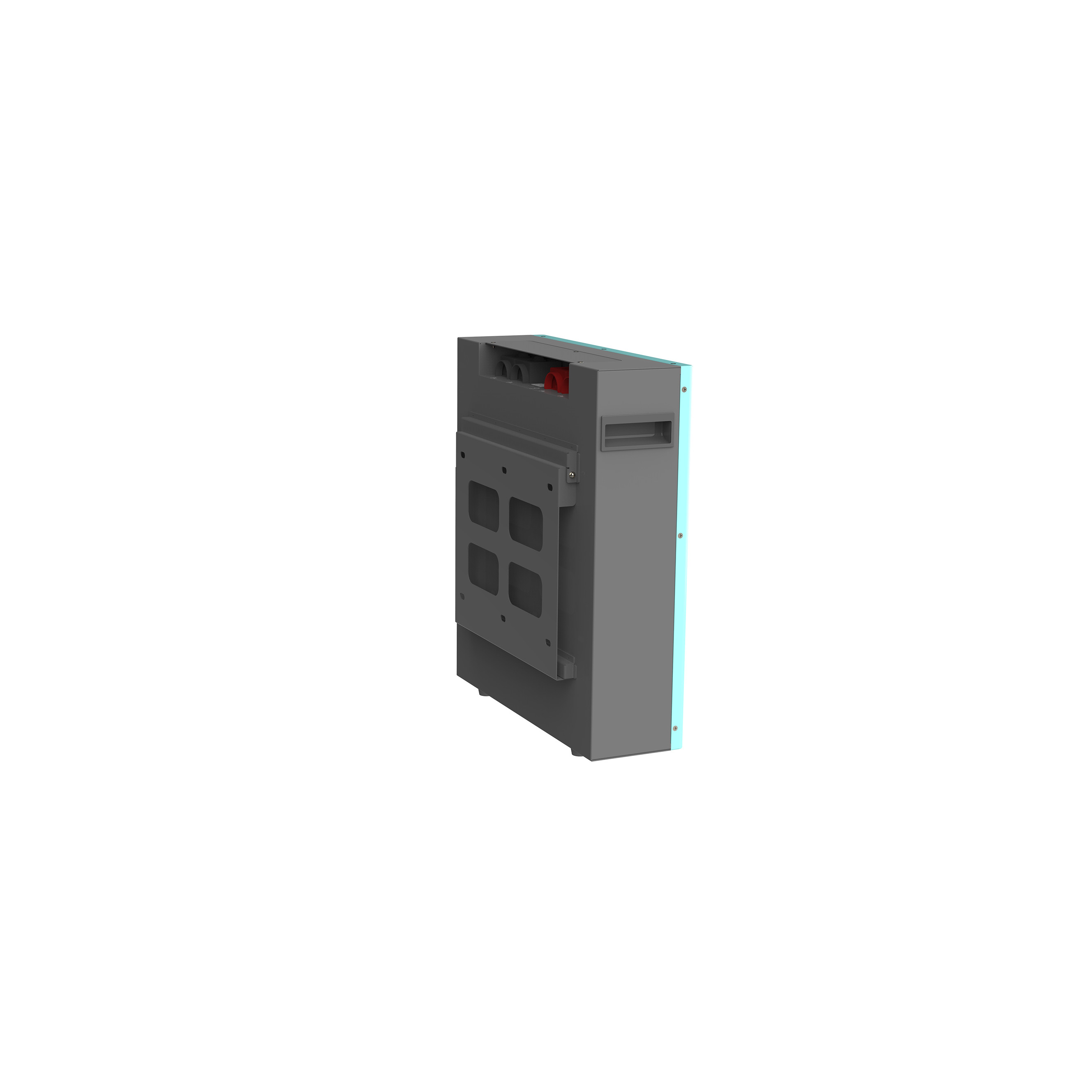

Batterie de stockage d'énergie LiFePo4 avec 51,2 V
Modèle | BPL 5.1 | BPL 10.2 | BPL 15.3 |
Performance | |||
Cellule technologie | LFP (LiFePO4) | ||
Battre utilisable énergie | 5,12 kWh | 10,24 kWh | 15,36 kWh |
Nominal tension | 51,2 V | ||
en fonctionnement tension | 42,0 - 57,6 V | ||
Nominal sortir actuel | 100 A / 50 A | 200 A / 100 A | 300 A / 150 A |
BMS protection actuel | 110 A, 1 s | 210 A, 1 s | 310 A, 1 s |
Communication | |||
Afficher | Indicateur d'état SOC, indicateur LED | ||
Communication | PEUT / RS485 / RS232 | ||
Général Spécification | |||
Dimension (L*P*H) | 450×155×520 millimètres | 450×155×863 millimètres | 720×160×906 millimètres |
Poids | 48 kilogrammes | 92 kilogrammes | 126 kilogrammes |
Installation | Support au sol ou mural | ||
en fonctionnement température | -20 à 60 °C (-4 à 140 °F) | ||
Environnement humidité | ≤ 95%RH (sans condensation) | ||
protection notation | IP 21 | ||
Faire du vélo vie | 5000 Cycles @ 80% DOD / 25℃/0.5C | ||
Évolutivité | Max 15 batteries en parallèle | ||
Application | ON Grid / ON Grid + Secours / Off Grid / UPS | ||
Standard Conformité | |||
Certificats | Cellule : UN38.3 / IEC62619 / UL 1642 / JET | ||
Batterie : UN38.3 / IEC62619 / IEC61000 / UKCA (Plus disponible sur demande) |
